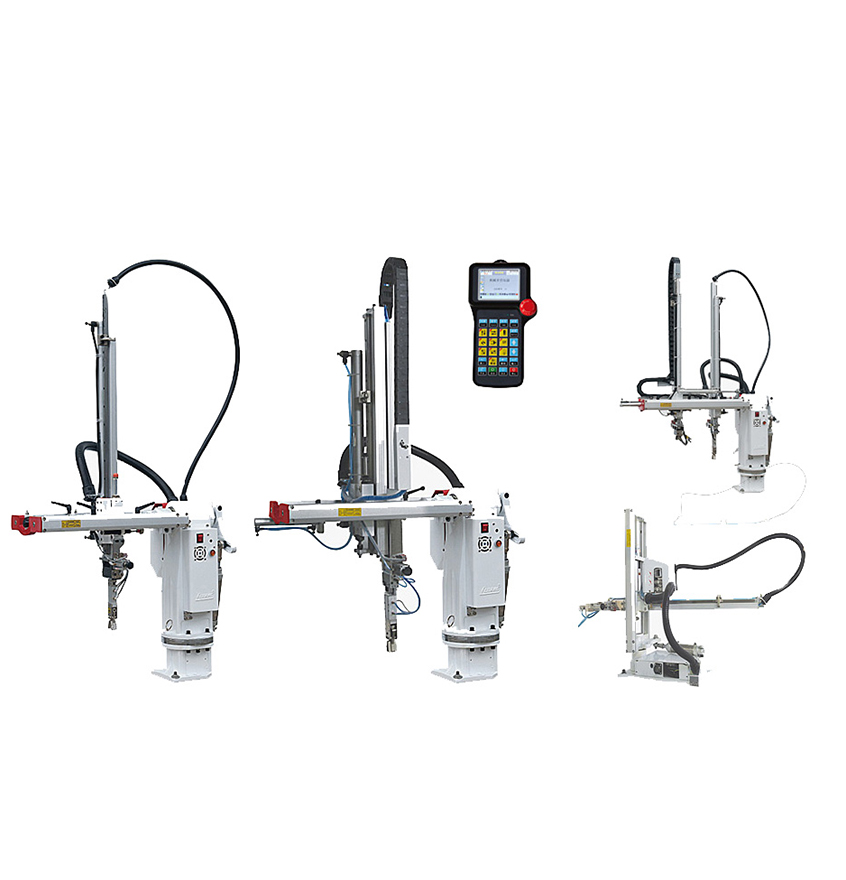

Small inclined arm manipulator

Features:
●Pneumatic drive is adopted for up and down, indexing, unscrewing and screwing, which is fast and efficient.

• Rotate the structure left and right. When changing the storage, it is easy to adjust. Just adjust the screw. The rotating clamp can be rotated 90 degrees.
  ●Mold change adjustment mechanism, when changing the mold, just open the fixed handle, can be rotated 90 degrees, improve mold change efficiency.
  ●The jig loop, single-function type can only be clipped. Optional vacuum function.
  ●Rugged arm structure, light and high rigidity aluminum alloy structural beam, with linear bearings and high rigidity bearing steel guide rails.
  ●Double-cut arm, using high-rigidity linear slides and high-rigid structural beams, specially designed belt double speed mechanism. The height of the upper and lower arms is greatly shortened, and only half of the optimized upper and lower cylinders can reach the full stroke. It can increase the speed and stability of the uplink and the downlink.

*Special design upon request.
