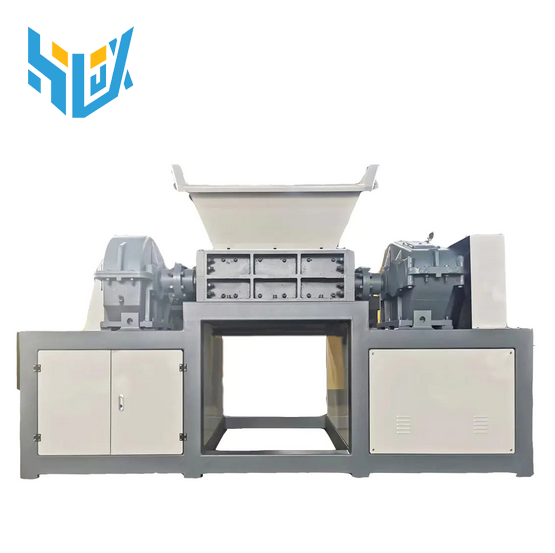

Double-Shaft Shredder

The double-shaft shredder has the characteristics of low noise, low energy consumption, and high output, which is mainly reflected in the design of low-speed, large-torque shearing.  You can choose single-motor or dual-motor operation.  The size of the blade can be customized, and different pressing devices can be installed according to different materials.  Through this crushing method, the accumulation of materials can be increased, or the materials can be further processed, such as the separation of foreign bodies.  The scope of application of the machine includes: plastics, small electronic appliances, tires, wood, packaging materials, metals and chemical fibers.
Applications:
1,Shredding of unqualified products or used recycled materials into smaller pieces for recycling.
2,Reducing the volume of raw materials that have not been processed for use in mixing with other materials.
3,Shredding organic materials to create biofuels.
4,Some textile materials are shredded for fiber reuse, such as carpet shredding.
5,In fact, shredders are used to shred a wide variety of solid or empty materials such as plastics, rubber, tires, fibers, paper, wood, barrels, waste electrical appliances, waste cables, industrial scraps, and household waste.
Features:
Compared with other crushers, the shredder is characterized by low shaft speed, low noise and low energy consumption.

Model	HGSS800	HGSS1000	HGSS1200
Motor power	22KW*2	30KW*2	37KW*2
Crushing chamber size	800mm*500mm	1000mm*650mm	1200mm*800mm

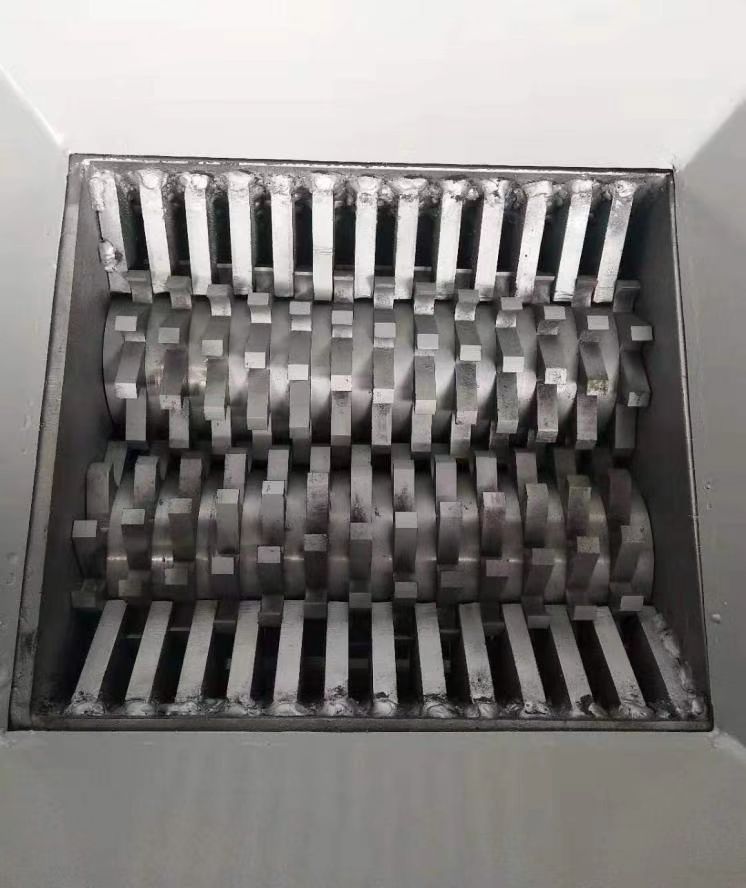

Number of rotary cutters	10pieces*2=20	13pieces*2=26	15pieces*2=30
Fixed knife	240 * 40mm		440*40mm
Spacer size	240 *∅170mm*40mm		240 *∅170mm*40mm
Fixed knife material	55sicr
Blade specifications	300 * 160 * 35mm	350 * 170 * 40mm	440*180*40mm
Knife thickness	35mm	40mm	40mm
Blade Material	H13
Spindle specification	1240*∅170mm*2pcs		1580*180mm*2pcs
Main shaft material	42Crmo
Crushing capacity	600-800KG/H	800-1000KG/H	1000-1200KG/H
Weight	4000KG	4500KG	5000KG
Dimensions	L3200*W1400*H2100mm	L3300*W1800*H2100mm	L3600*W1400*H2800mm

The above parameters are for reference only, we will choose a more suitable blade material, blade size and motor power according to the characteristics of the material you need to shred.
